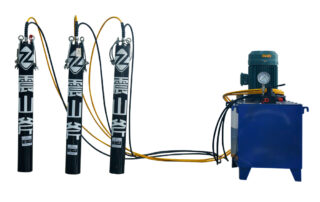

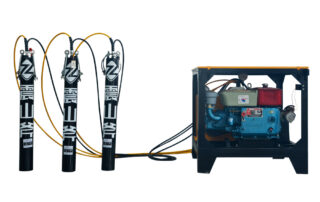

Piston Rod Rock Splitter

Aukey piston rod rock spillter is mainly used in open-pit mining, tunnel excavation, concrete demolition and other fields.

Per rod have 8 to 10 pistons , Each power station can max carry 8 splitting rod.

Efficient operation, low cost, safety and environmental protection, dust-free and sile

Need a quote?

SPECIFICATION

Machine Type	PLB-85	PLB-95	PLB-110	PLB-130	PLB-150	PLB-170	PLB-200
Rod Length	650 mm	650 mm	710 mm	1060 mm	950 mm	1030 mm	1280 mm
Plunger Diameter	35 mm	35 mm	35 mm	45 mm	50 mm	90 mm	110 mm
Plunger Cylinder Diameter	50 mm	50 mm	60 mm	70 mm	80 mm	90 mm	100 mm
Plunger Stroke	18 mm	21 mm	25 mm	30 mm	39 mm	45 mm	44 mm
Drilling Diameter	90 mm	100 mm	115 mm	140 mm	160 mm	180 mm	210 mm
Drilling Depth	900 mm	1000 mm	1200 mm	1300 mm	1400 mm	1500 mm	1600 mm
Rod Weight	30 kg	35 kg	43 kg	90 kg	110 kg	160 kg	300 kg
Number of Plugs	9 pieces	9 pieces	8 pieces	10 pieces	8 pieces	8 pieces	8 pieces

Rod Specification

Machine Type :PLB-95

Rod Length:650 mm

Plunger Diameter:35 mm

Plunger Cylinder Diameter: 50 mm

Plunger Stroke:21 mm

Drilling Diameter :100 mm

Drilling Depth:1000 mm

Number of Plugs:9 pieces

APPLICATION AND PROJECT

Mountain Mining

Effusive Rock Mining

Quartzite Mining

Basalt Splitting

Ultrahard Rock Splitting

volcanic Rock Splitting

PRINCIPLES

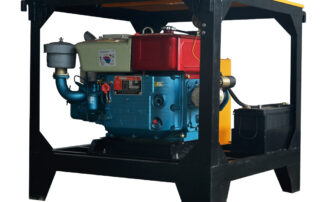

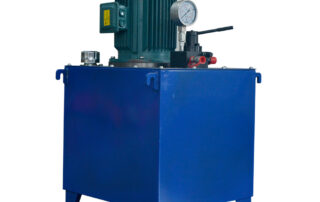

Its power source is the hydraulic oil transmitted by the hydraulic power station through the oil pipe, which can reach 160 MP. When the oil is fed in, the piston of the hydraulic splitting rod will extend. This is a working process.It can split in less than a minute
